SR40
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)

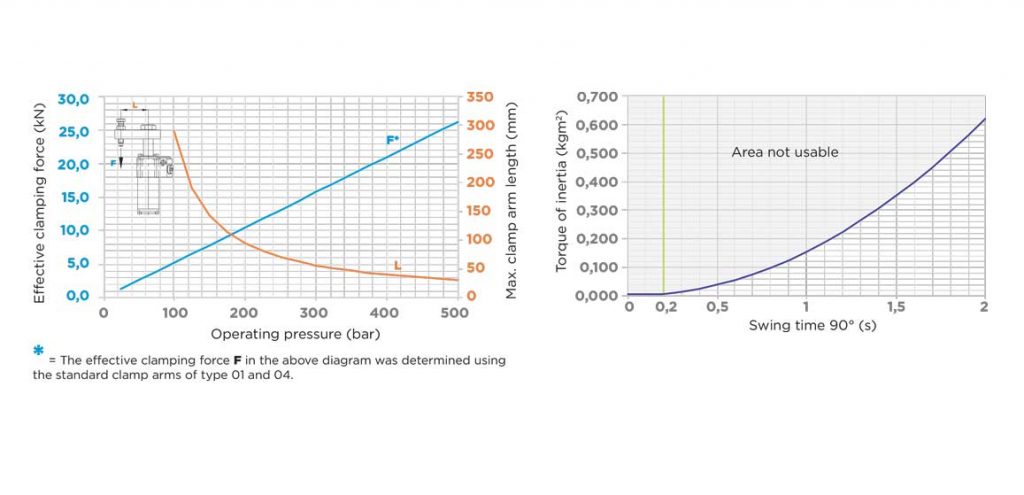

Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Cylinder body type:
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
