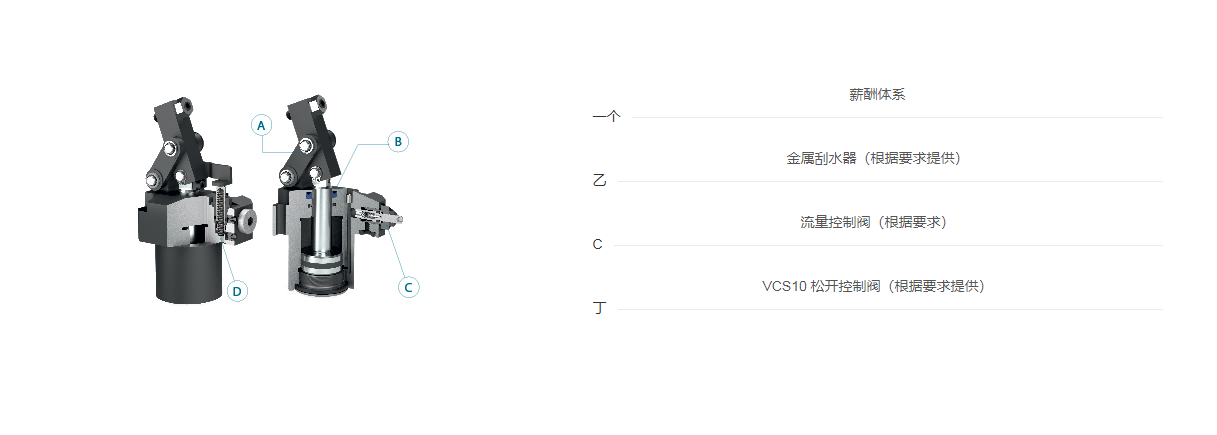

The connecting rod clamping cylinder stands out for its high clamping force and minimal space requirements.
The thread model ensures easy positioning and precise alignment during operation.
The connecting rod clamp has single-acting or double-acting versions, and can be equipped with an air-powered clamping arm position control device.
Product List
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2

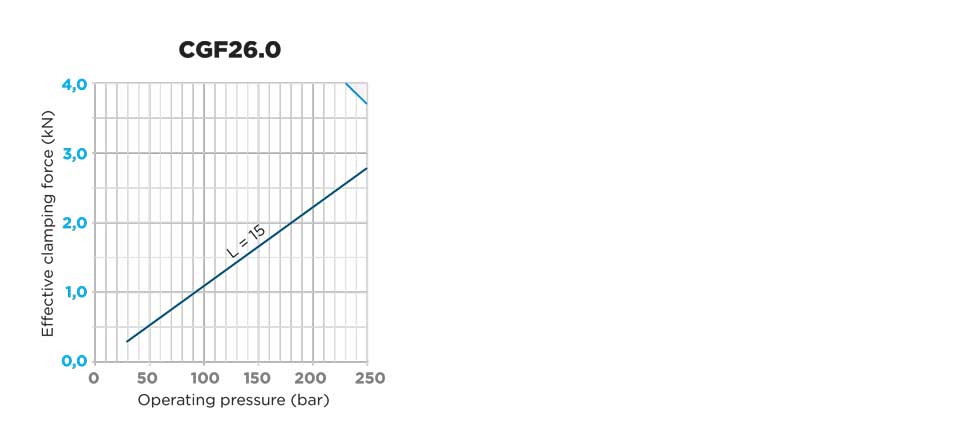

Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2

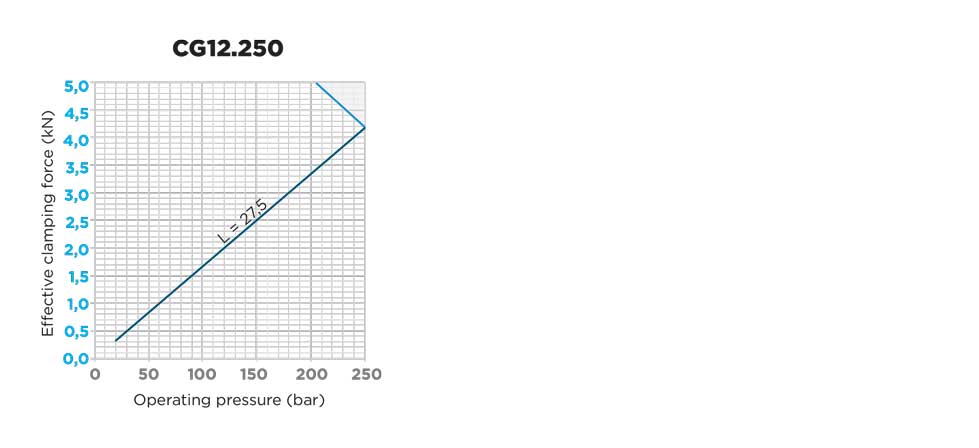

Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3

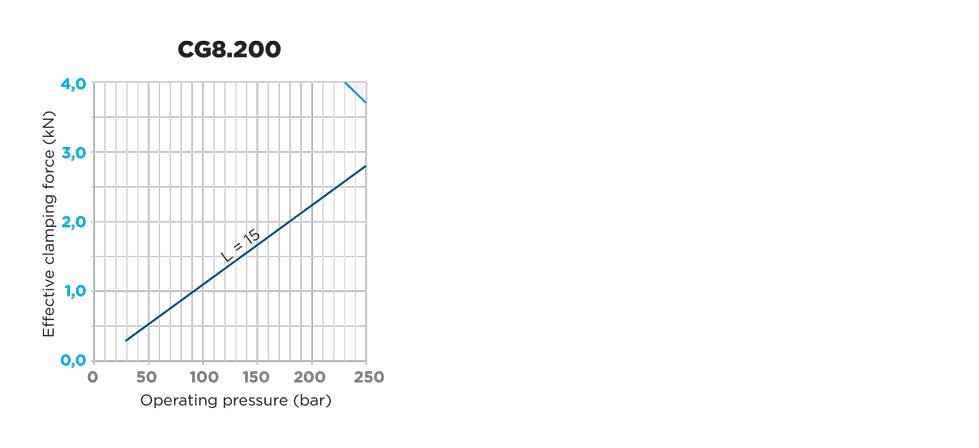

Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8

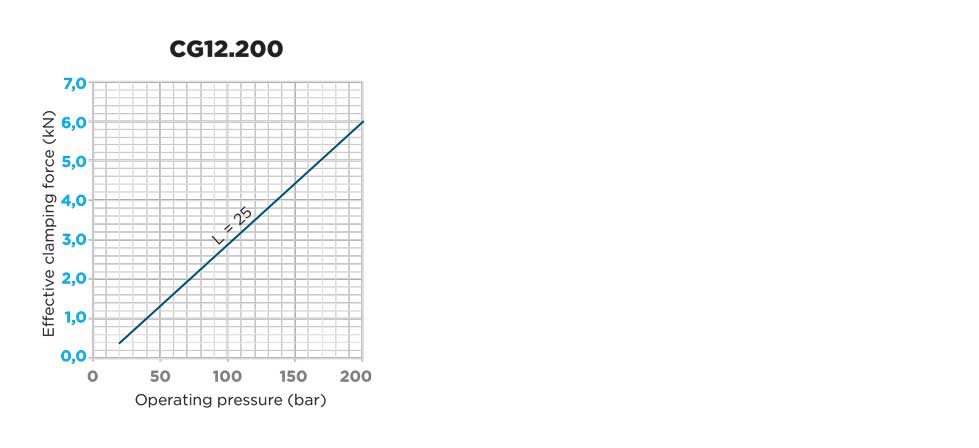

Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5

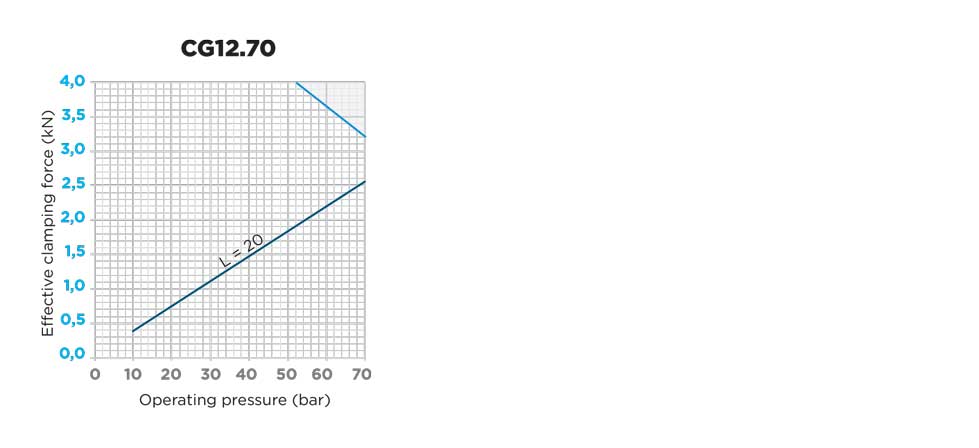

Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7

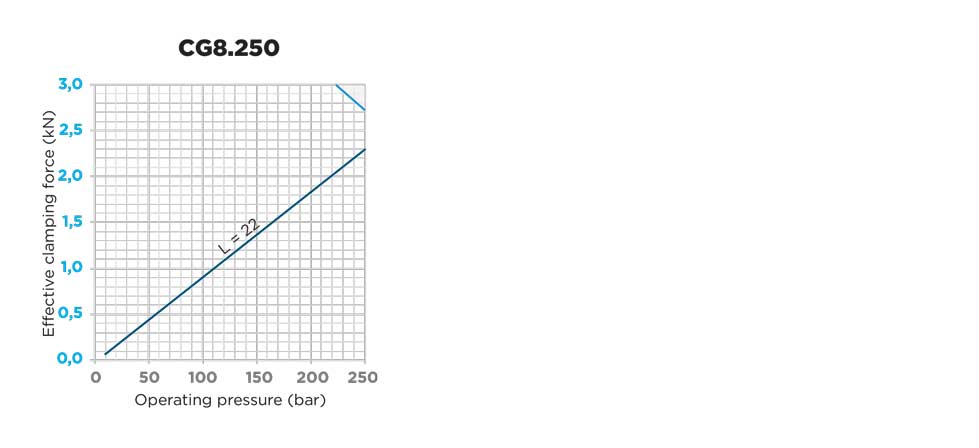

Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8

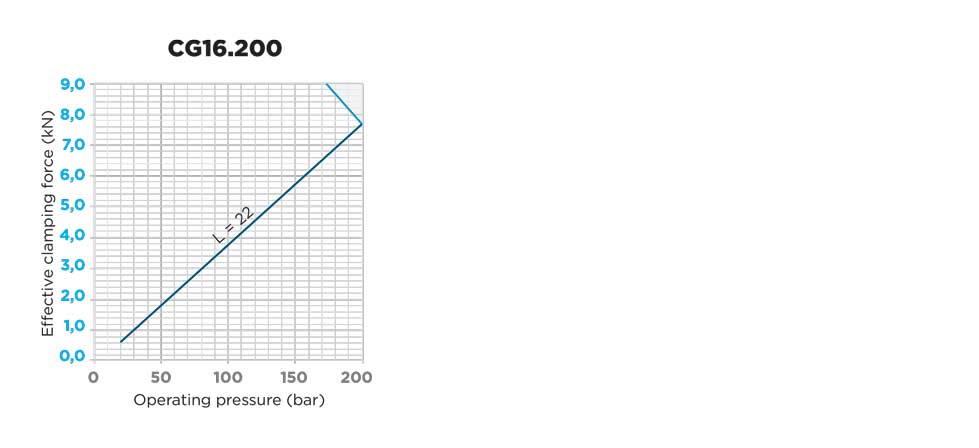

Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9

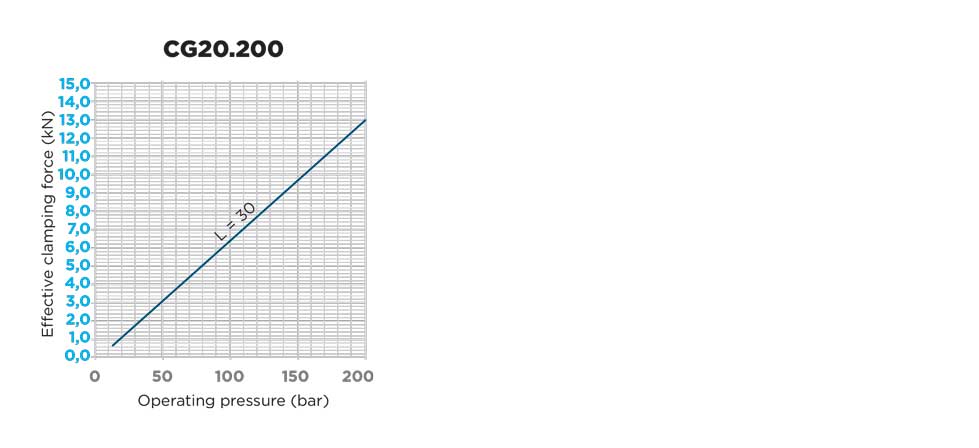

Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8

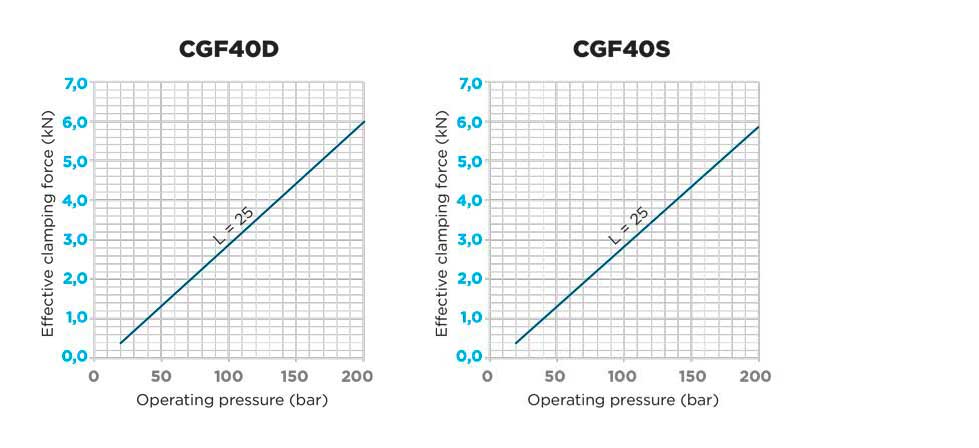

Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9

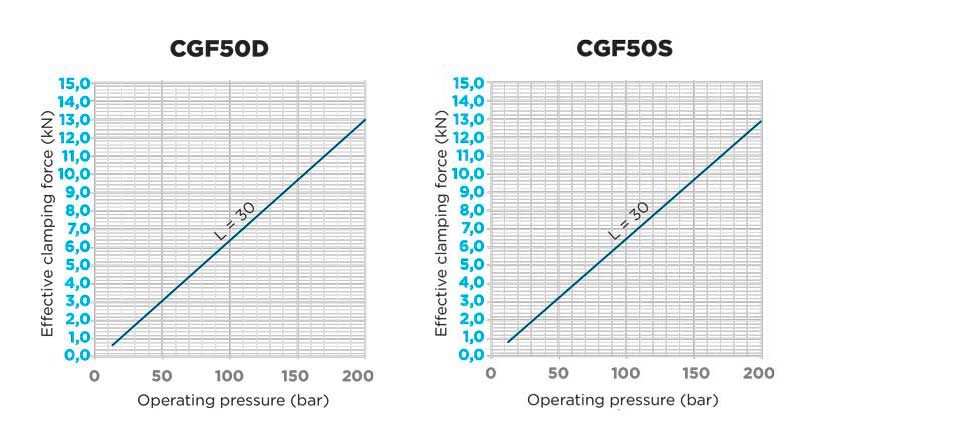

Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 23
Total cylinder stroke (mm) 18.5
Piston clamping area (cm²) 4.15
Piston releasing area (cm²) 3.65
Clamping oil volume (cm³) 7.7 (relaxation)
Oil volume (cm³) 6.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Piston diameter (mm) 12
Total cylinder stroke (mm) 18.5
Clamping area of the piston (cm²) 1.13
Loosening area of the piston (cm²) 0.63
Clamping oil volume (cm³) 2.1 (loosening)
Oil volume (cm³) 1.2
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn)* 2.2
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Clamping area of the piston (cm²) 1.54
Loosening area of the piston (cm²) 1.04
Clamping oil volume (cm³) 2.2 (loosening)
Oil volume (cm³) 1.5
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 16
Clamping area of the piston (cm²) 3.14
Loosening area of the piston (cm²) 2.35
Clamping oil volume (cm³) 5 (loosening)
Oil volume (cm³) 3.8
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 4
Effective clamping force
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 15
Total cylinder stroke (mm) 18.5
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.1 (loosening)
Oil volume (cm³) 7
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 20.5
Clamping area of the piston (cm²) 4.91
Loosening area of the piston (cm²) 3.78
Clamping oil volume (cm³) 10.1 (loosening)
Oil volume (cm³) 7.8
Maximum working pressure (Bar) 70
Nominal clamping force under maximum working pressure (Kn)* 2.5
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 12
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Piston diameter (mm) 16
Total cylinder stroke (mm) 24
Clamping area of the piston (cm²) 2.01
Loosening area of the piston (cm²) 0.88
Clamping oil volume (cm³) 4.8 (loosening)
Oil volume (cm³) 2.1
Maximum working pressure (Bar) 250
Nominal clamping force under maximum working pressure (Kn) 3.7
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Piston diameter (mm) 24
Total cylinder stroke (mm) 24
Clamping area of piston (cm²) 4.52
Loosening area of piston (cm²) 2.51
Clamping oil volume (cm³) 10.8 (loosening)
Oil volume (cm³) 6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn)* 8.8
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Upper flange
Available version:
Double-acting type
Piston rod diameter (mm) 8
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Piston diameter (mm) 14
Total cylinder stroke (mm) 14
Piston clamping area (cm²) 1.54
Piston releasing area (cm²) /
Clamping oil volume (cm³) 2.2 (clamping)
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 3
Effective clamping force
Cylinder body type:
Threaded type M32x1.5
Available version:
Single-acting version (spring return)
Piston rod diameter (mm) 10
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Piston diameter (mm) 20
Total cylinder stroke (mm) 15
Piston clamping area (cm²) 3.14
Piston releasing area (cm²) /
Clamping oil volume (cm³) 4.7, releasing
Oil volume (cm³) /
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 4
Effective clamping force
Threaded version: M40x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 12
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Piston diameter (mm) 25
Total cylinder stroke (mm) 19
Clamping area of piston (cm²) 4.91
Loosening area of piston (cm²) 3.78
Clamping oil volume (cm³) 9.3 (loosening)
Oil volume (cm³) 7.2
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 6.8
Effective clamping force
Threaded version: M50x1.5
Available versions:
Double-acting type
Single-acting version (spring return)
Piston rod diameter (mm) 20
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
Piston diameter (mm) 34
Total cylinder stroke (mm) 24.5
Clamping area of piston (cm²) 9.08
Loosening area of piston (cm²) 5.94
Clamping oil volume (cm³) 22.2 (loosening)
Oil volume (cm³) 14.6
Maximum working pressure (Bar) 200
Nominal clamping force under maximum working pressure (Kn) 13.9
Effective clamping force
