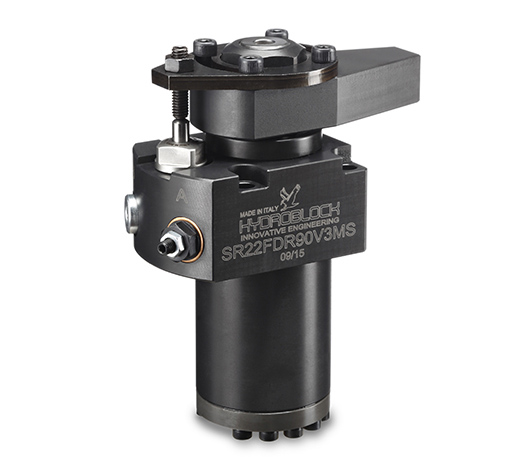

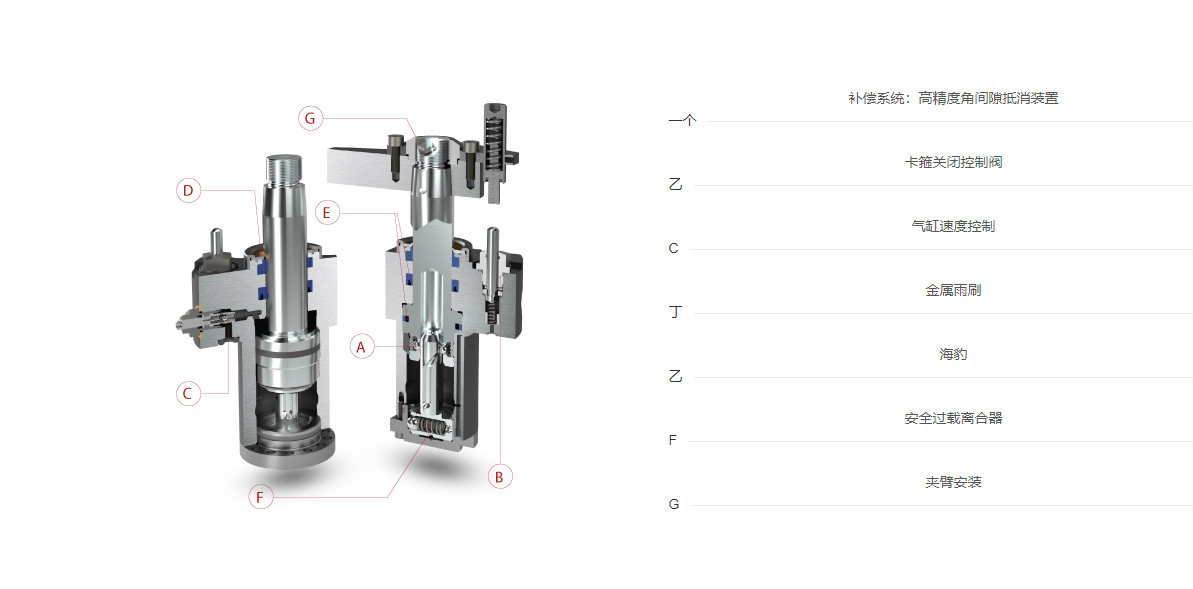

With its unique internal compensation system, these oscillating clamping cylinders can maintain the clamping point with the highest precision for a long period of time.
They can be equipped with clamping arm position control valves to ensure precise clamping of the workpiece. Other accessories include VRF flow control valves for controlling the oscillation speed and metal wipers designed to protect the main wiper.
The larger clamping area either provides a smaller size and lower cost, or offers higher clamping force.
The rated working pressure is up to 500 bars.
They can be equipped with clamping arm position control valves to ensure precise clamping of the workpiece. Other accessories include VRF flow control valves for controlling the oscillation speed and metal wipers designed to protect the main wiper.
The larger clamping area either provides a smaller size and lower cost, or offers higher clamping force.
The rated working pressure is up to 500 bars.
Product List

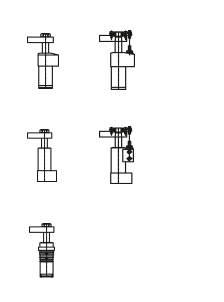

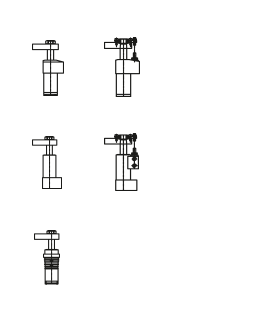

Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9

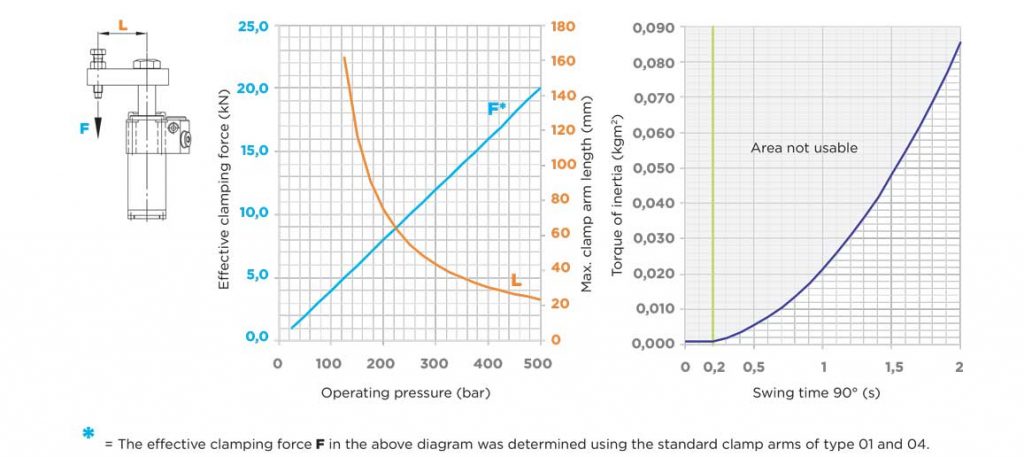

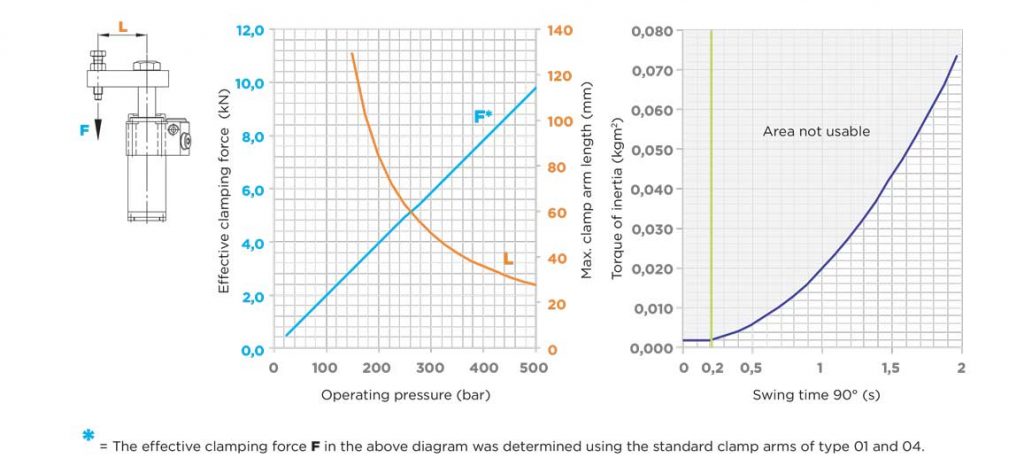

Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency

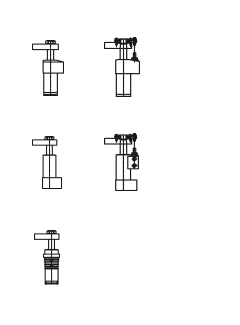

Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9

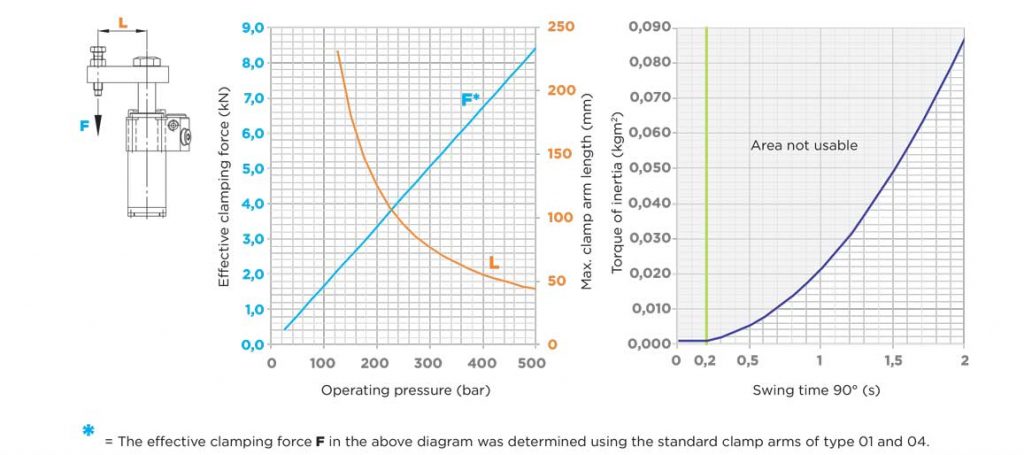

Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count

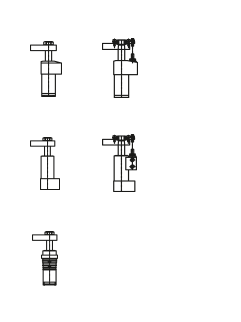

Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)

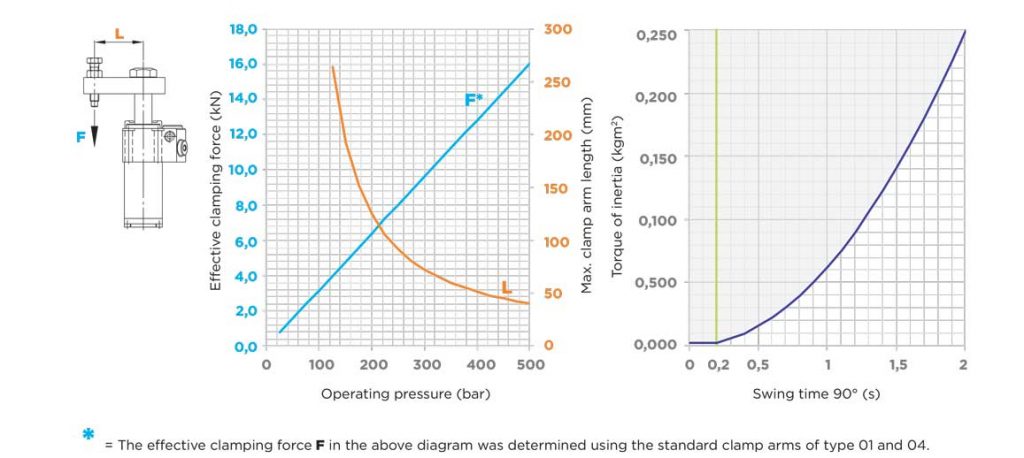

Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency

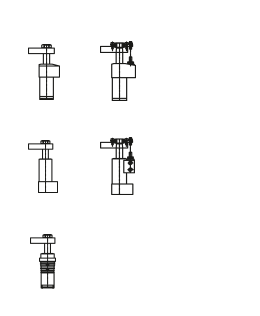

Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)

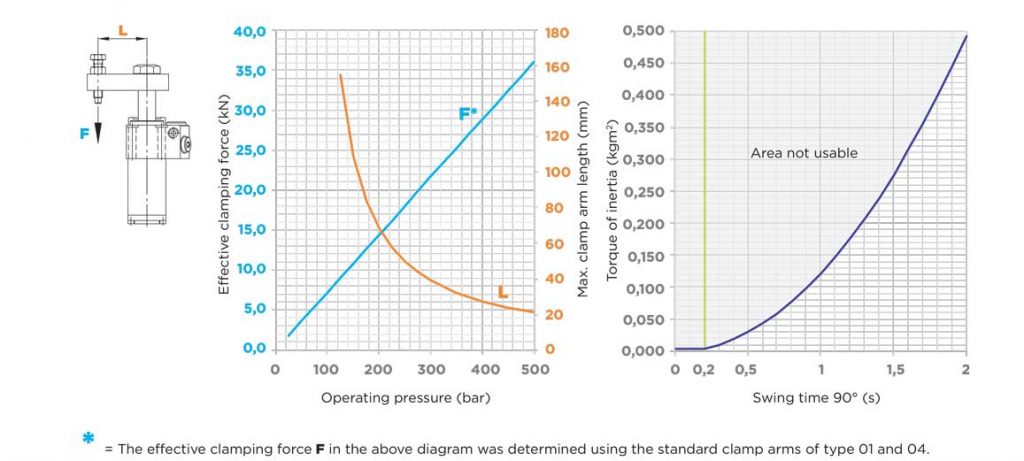

Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)

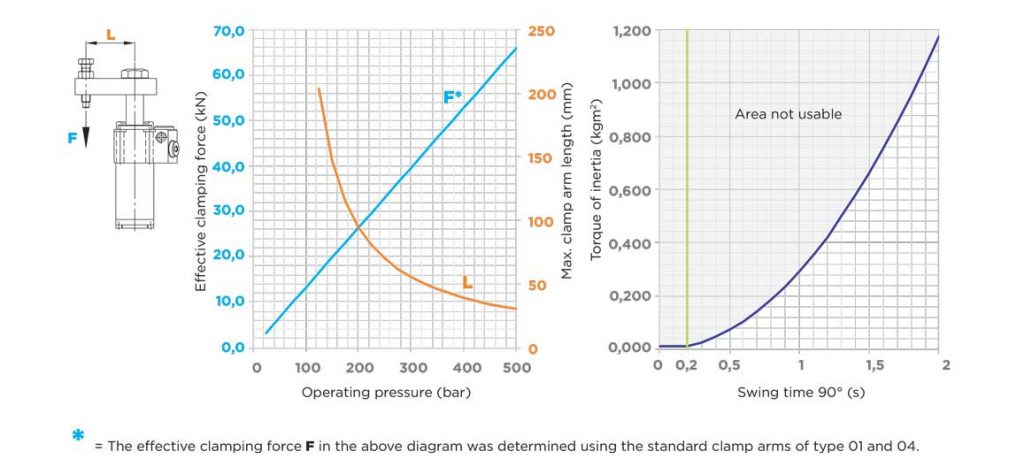

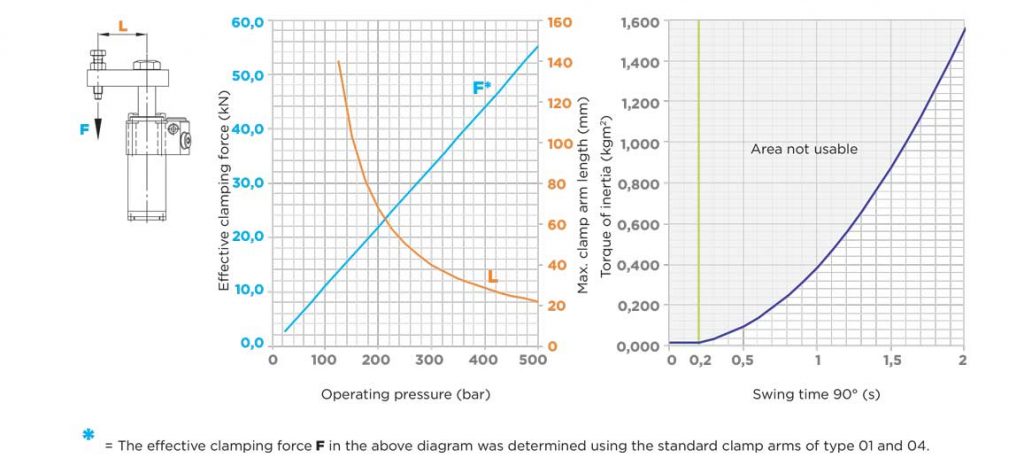

Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 1.9
"Length" of the clamping arm "L" (mm) 40
Rod diameter (mm) 16
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 2.51
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 5.5 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing frequency
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Clamping force at 100 bar, using "L" length (kN) of the standard "01" type clamping arm 1.5
"Length" of the "L" clamping arm (mm) 40
Rod diameter (mm) 18
Piston diameter (mm) 24
Total cylinder stroke (mm) 22
Swing stroke (mm) 8
Clamping stroke (mm) 14
Piston clamping area (cm2) 1.98
Piston releasing area (cm2) 4.52
Clamping oil volume (cm3) 4.4 (released)
Oil volume (cm3) 9.9
Effective clamping force / Swing count
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard '01 type' clamping arm with 'L' length" (kN) 4
"Length of 'L' clamping arm" (mm) 52
Rod diameter (mm) 22
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 5.27
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 13.2 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Clamping force at 100 bar, for use
"Standard 01 type" clamping arm with "L" length (kN) 3.1
"Length" of the "L" clamping arm (mm) 52
Rod diameter (mm) 25
Piston diameter (mm) 34
Total cylinder stroke (mm) 25
Swing stroke (mm) 10
Clamping stroke (mm) 15
Piston clamping area (cm2) 4.17
Piston releasing area (cm2) 9.07
Clamping oil volume (cm3) 10.4 (released)
Oil volume (cm3) 22.6 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 7.3
"Length" of the clamping arm "L" (mm) 60
Rod diameter (mm) 28
Piston diameter (mm) 45
Total cylinder stroke (mm) 28
Swing stroke (mm) 12
Clamping stroke (mm) 16
Piston clamping area (cm2) 9.75
Piston releasing area (cm2) 15.9
Clamping oil volume (cm3) 27.3 (released)
Oil volume (cm3) 44.5 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve Toner cartridge
Available versions:
Metal wiper
VRF flow control valve (option)
Arm bracket position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 10.5
Length of "L" type clamping arm (mm) 80
Rod diameter (mm) 35
Piston diameter (mm) 55
Total cylinder stroke (mm) 36
Swing stroke (mm) 15
Clamping stroke (mm) 21
Piston clamping area (cm2) 14.1
Piston releasing area (cm2) 23.8
Clamping oil volume (cm3) 50.8 (released)
Oil volume (cm3) 85.7 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Lower flange with integrated pneumatic valve
Available versions:
Metal wiper
VRF flow control valve (option)
Arm position control valve
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "01 type" clamping arm with "L" length (kN) 13
"Length" of the clamping arm "L" (mm) 100
Rod diameter (mm) 45
Piston diameter (mm) 65
Total cylinder stroke (mm) 51
Swing stroke (mm) 15
Clamping stroke (mm) 36
Piston clamping area (cm2) 17.3
Piston releasing area (cm2) 33.2
Clamping oil volume (cm3) 88.2 (released)
Oil volume (cm3) 169.3 Effective clamping force / Swing frequency
