This series of oscillating clamping cylinders is compatible with competitors' products and does not come with a unique compensation system (except for some clearly marked models).
The features of these cylinders are a sturdy design, unparalleled reliability, and the largest bolt and ball diameters. They are made of heat-treated alloy materials.
This type of oscillating clamping cylinder inevitably has a small angular gap that increases over time.
For applications where precise positioning of the clamping arm is required, we recommend using the SR compensation system version.
Please provide the text that needs to be translated accurately and without
The features of these cylinders are a sturdy design, unparalleled reliability, and the largest bolt and ball diameters. They are made of heat-treated alloy materials.
This type of oscillating clamping cylinder inevitably has a small angular gap that increases over time.
For applications where precise positioning of the clamping arm is required, we recommend using the SR compensation system version.
Please provide the text that needs to be translated accurately and without
Product List
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Ink cartridge
Available versions:
Metal wiper
VRF flow control valve (optional)
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8

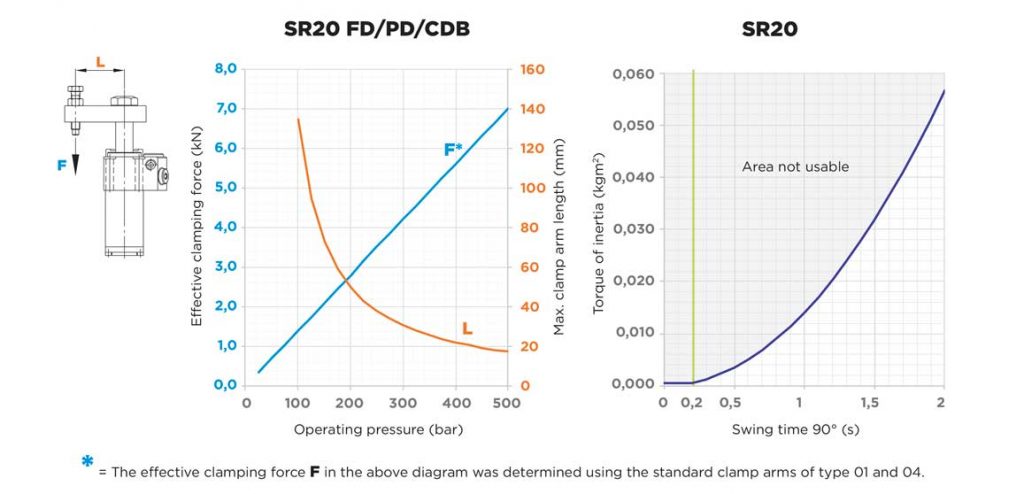

Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Cartridge
Available versions:
Metal wiper
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Available version:
Metal wiper
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Ink cartridge
Available versions:
Metal wiper
VRF flow control valve (optional)
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Cartridge
Available versions:
Metal wiper
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Available version:
Metal wiper
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Ink cartridge
Available versions:
Metal wiper
VRF flow control valve (optional)
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Cartridge
Available versions:
Metal wiper
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Available version:
Metal wiper
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Ink cartridge
Available versions:
Metal wiper
VRF flow control valve (optional)
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Cartridge
Available versions:
Metal wiper
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Available version:
Metal wiper
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Ink cartridge
Available versions:
Metal wiper
VRF flow control valve (optional)
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Cartridge
Available versions:
Metal wiper
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Available version:
Metal wiper
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Ink cartridge
Available versions:
Metal wiper
VRF flow control valve (optional)
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard '01 type' clamping arm with 'L' length (kN) 1.3)
"Length of 'L' clamping arm (mm) 40
Piston rod diameter (mm) 20
Piston diameter (mm) 25
Total cylinder stroke (mm) 18
Swing stroke (mm) 8
Clamping stroke (mm) 10
Piston clamping area (cm2) 1.76
Piston releasing area (cm2) 4.9
Clamping oil volume (cm3) 3.2 (released)
Oil volume (cm3) 8.8
Effective clamping force / Swing frequency
Cartridge
Available versions:
Metal wiper
Single-acting version
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Upper flange
Upper flange with integrated pneumatic valve
Lower flange
Available version:
Metal wiper
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 3.4
Length of "L" clamping arm (mm) 75
Piston rod diameter (mm) 32
Piston diameter (mm) 40
Total cylinder stroke (mm) 22 / 35
Swing stroke (mm) 8
Clamping stroke (mm) 14 / 27
Piston clamping area (cm2) 4.52
Piston releasing area (cm2) 12.56
Clamping oil volume (cm3) 10 / 15.8 (relaxation)
Oil volume (cm3) 27.6 / 4 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Clamping force at 100 bar, using the standard "L" type clamping arm (kN) 5
"L" clamping arm length (mm) 100
Piston rod diameter (mm) 40
Piston diameter (mm) 50
Total cylinder stroke (mm) 36 / 61
Swing stroke (mm) 11
Clamping stroke (mm) 25 / 50
Piston clamping area (cm2) 7.06
Piston releasing area (cm2) 19.63
Clamping oil volume (cm3) 25.4 / 43.1 (releasing)
Oil volume (cm3) 70.7 / 119.7 Effective clamping force / Swing frequency
Top flange
Bottom flange
Available versions:
Metal wiper
VRF flow control valve (optional)
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "01 type" clamping arm with "L" length (kN) 8.7
"Length" of the "L" clamping arm (mm) 125
Rod diameter (mm) 50
Piston diameter (mm) 63
Total cylinder stroke (mm) 37 / 62
Swing stroke (mm) 11
Clamping stroke (mm) 26 / 51
Piston clamping area (cm2) 11.54
Piston releasing area (cm2) 31.17
Clamping oil volume (cm3) 42.7 / 71.6 (released)
Oil volume capacity (cm3) 115.3 / 193.2 Effective clamping force / Swing frequency
