SR20CD
Maximum working pressure (bar) 500
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)

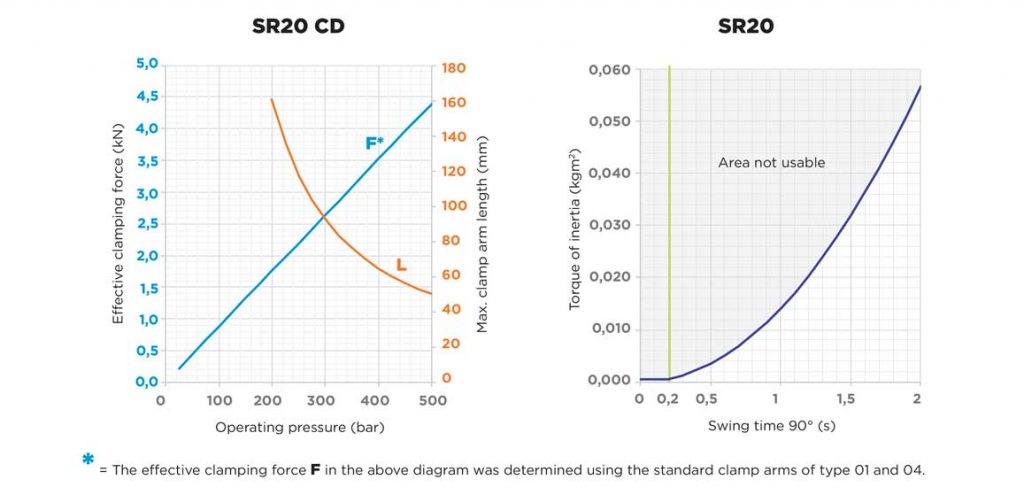

Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Clamping force at 100 bar, using standard "L" type clamping arm
(kN) 0.9
Length of "L" type clamping arm (mm) 40
Rod diameter (mm) 20
Piston diameter (mm) 23
Total cylinder stroke (mm) 14
Swing stroke (mm) 6
Clamping stroke (mm) 8
Piston clamping area (cm2) 1.01
Piston releasing area (cm2) 4.15
Clamping oil volume (cm3) 1.4 (released)
Oil volume (cm3) 5.8 Effective clamping force / Swing frequency
Cylinder type:
Cartridge
Available versions:
Metal wiper
Single-acting version
Cartridge
Available versions:
Metal wiper
Single-acting version
