SR10
Maximum working pressure (bar) 350
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2

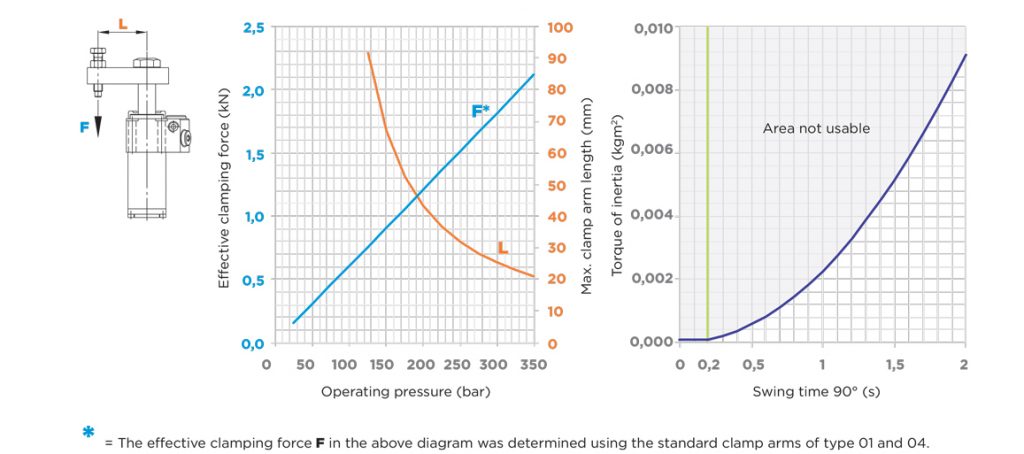

Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Clamping force at 100 bar, used
"Standard 01 type" clamping arm with "L" length (kN) 0.5
"Length" of the "L" clamping arm (mm) 26
Piston rod diameter (mm) 10
Piston diameter (mm) 14
Total cylinder stroke (mm) 16 / 26
Swing stroke (mm) 8 / 8
Clamping stroke (mm) 8 / 18
Piston clamping area (cm2) 0.75
Piston releasing area (cm2) 1.54
Clamping oil volume (cm3) 1.2 / 2
Releasing oil volume (cm3) 2.5 / 4 Effective clamping force / Swing frequency
Cylinder body type:
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
Upper flange
Upper flange with integrated pneumatic valve
Lower flange Toner cartridge
Available version:
Metal wiper
Single-action version
